＊全砖尺寸
＊内部无钽质和铝电解电容(高可靠性产品设计)
＊弹性保持时间(易于延长)
＊铝底板冷却
＊内置主动式功率因数修正器(PFC)
＊OCP / OVP / OTP
|
|
|
|
|

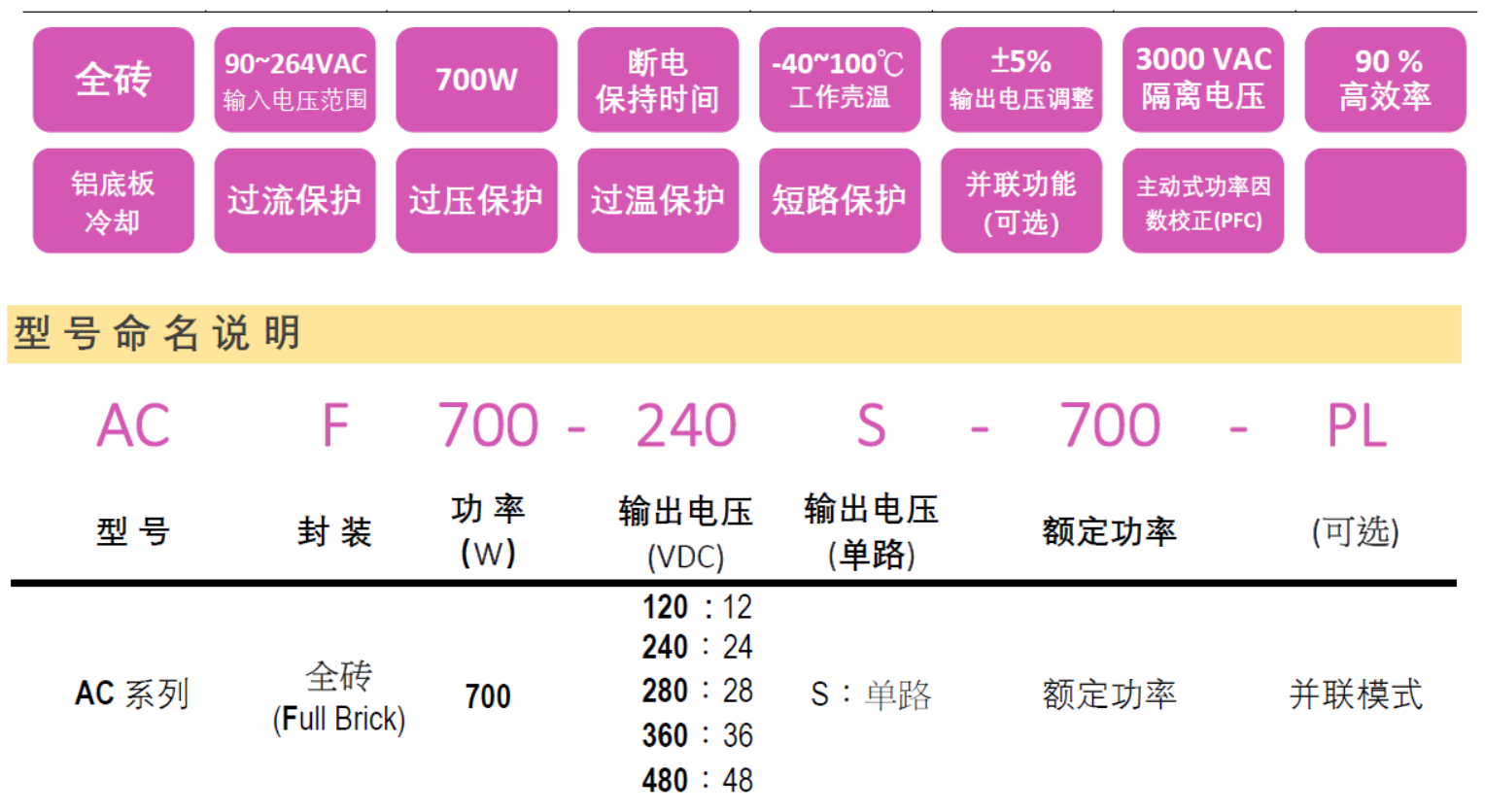

选型表
| 型号 | 输入 | 输出 | 效率 | ||||
| 电压 | 电流 | 电压 | 电流 | 功率 | |||
| 范围 | 标称 | 满载 | V | A | W | Typ. % | |
| ACF700-120S-700 | 90-264 | 230 | 3.38 | 12 | 58.33 | 700 | 87 |
| ACF700-240S-700 | 90-264 | 230 | 3.38 | 24 | 29.17 | 700 | 90 |
| ACF700-280S-700 | 90-264 | 230 | 3.38 | 28 | 25 | 700 | 90 |
| ACF700-360S-700 | 90-264 | 230 | 3.38 | 36 | 19.44 | 700 | 90 |
| ACF700-480S-700 | 90-264 | 230 | 3.38 | 48 | 15.58 | 700 | 90 |
详细规格需求请联系我司销售人员。
